8051 Microcontroller Lab

1
 GET START KEIL

vedio setup project keil

document quick start keil uVision 3 tyhgu7
2

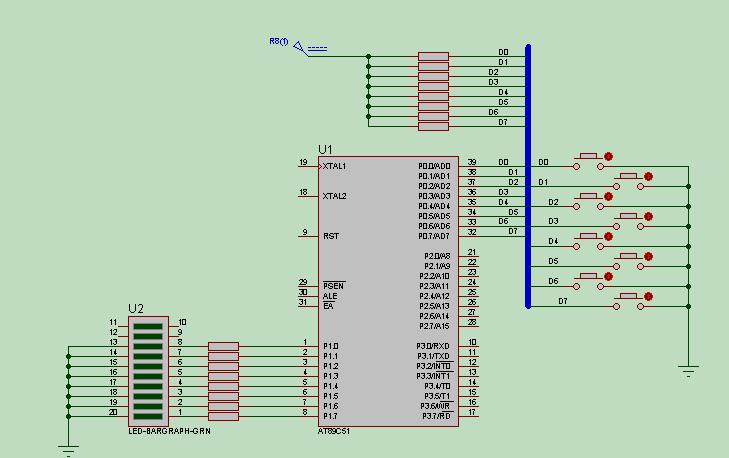

 8 BIT IN/OUT INSTRUCTION
28-05-2007		 IN_OUT_BYTE.C
SCHEMATIC
3
 in_out 1 bit instruction
28-05-2007 		IN_OUT_1BIT.C
SCHEMATIC
4
 sub function and call function subfun00.c this source file I want to present how to create sub function and call sub function in the project of content one source file
5
 project content more than one source file
subfunc01.c function.c
 this vedio i would like to show you how to makeing the project at content more than one source file
6

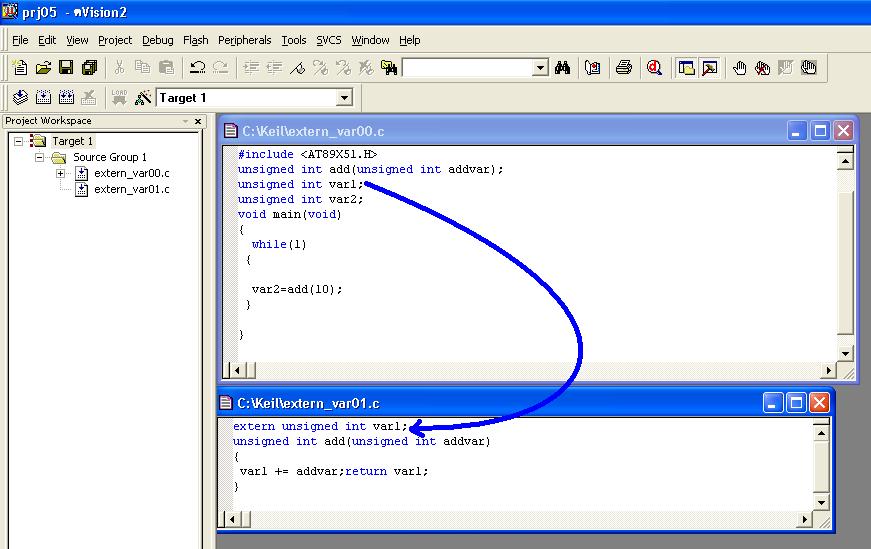

 how to declare external variable on the project more than one source file extern_var00.c
extern_var01.c
prj picture.jpg		 this project i would like to show you how to declare external varible
7

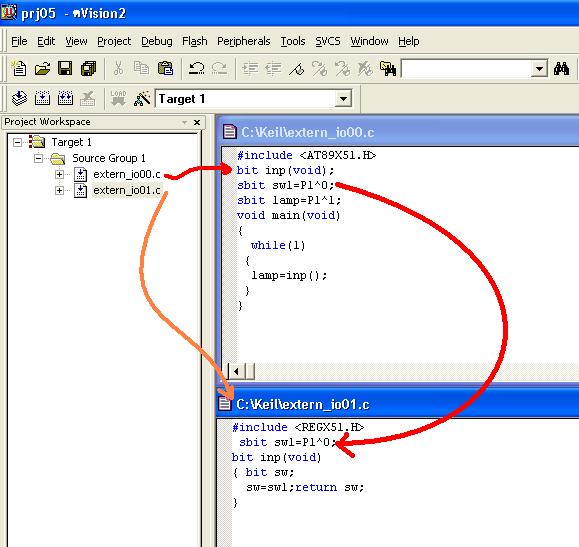

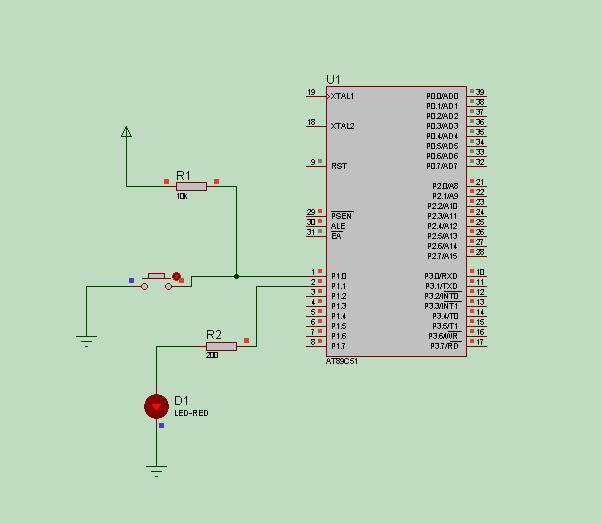

 how to declare external input/output variable on the project more than one source file 19-06-2007 extern_io00.
cextern_io01.
jpgcircuit.jpg		 this project i would like to show you delare in/out variable on the project have more than one source file
update on 19-06-2007

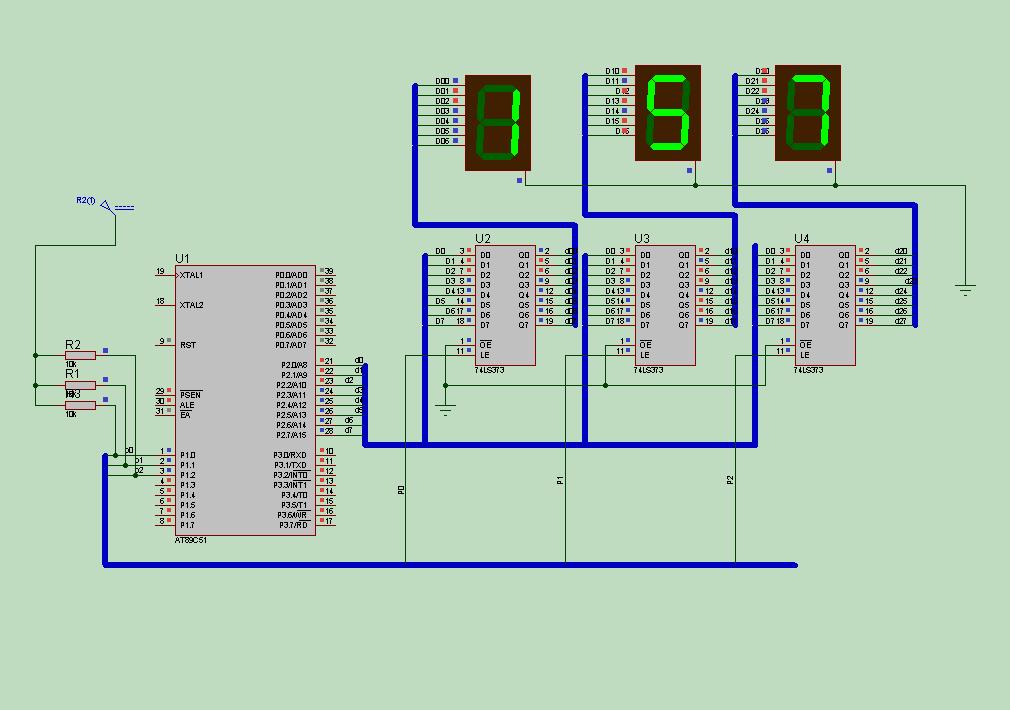

  basic scan 7_segment display

circuit

project_basic_7seg01_proteus8

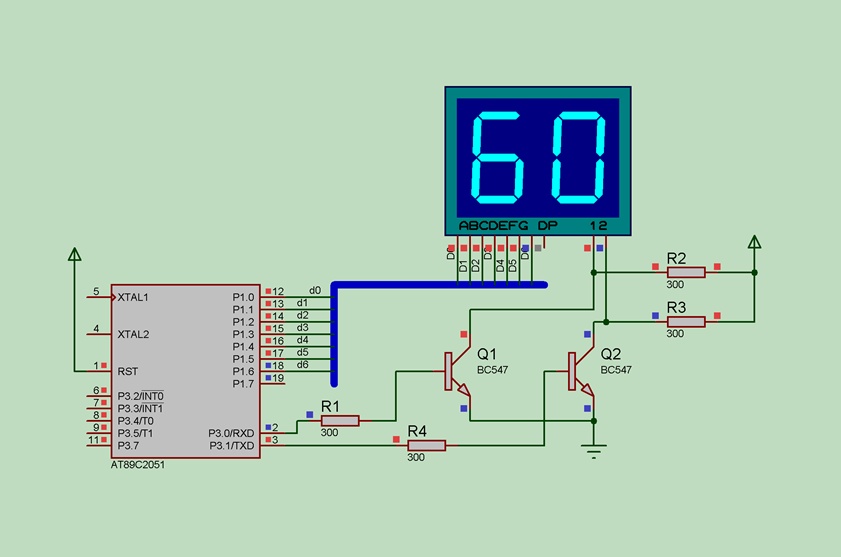

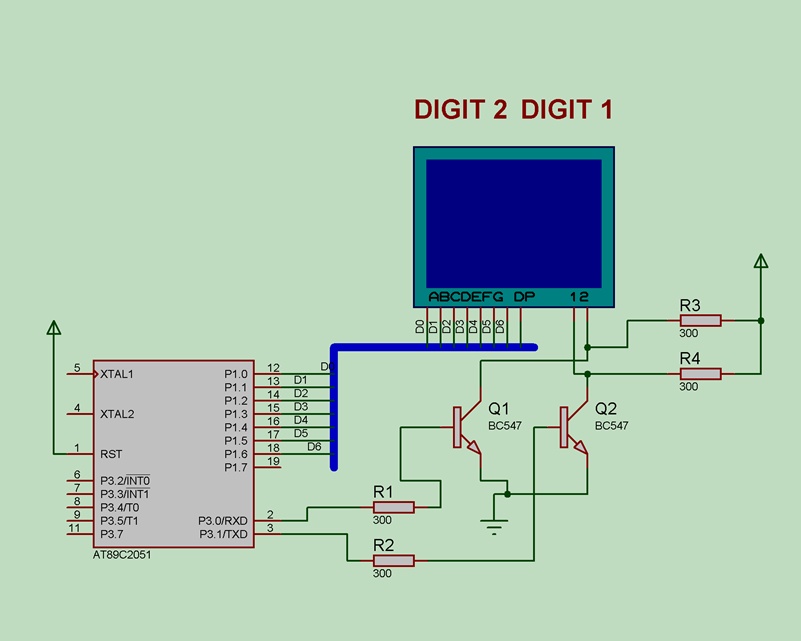

basic of   scan two digit 7segment display
  basic scan7_segment display

circuit

project basic 7segment02 proteus8



basic of scan two digit count up 7segment display

  basic scan7 segment display

circuit

project 7segment display proteus8

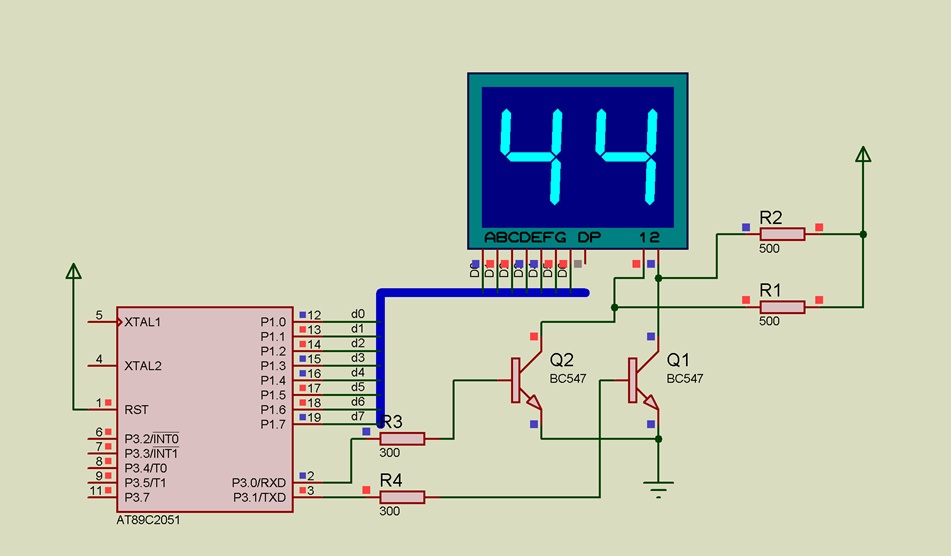

use interrupt timer0 for scan time 7segment display

8
 7segment output display update 20-06-2007 7segment_373.c
circuit.dsn		 the project i would like to you understand sent data method to 7segment output display
9
 7SEGMENT DISPLAY BY 74HC595
update 21-06-2007

hc595display.c
uln595display.DSN

 the project i would like to you understand Serial to parallel data transfer by 74hc595 with
application  7 segment dispay
10

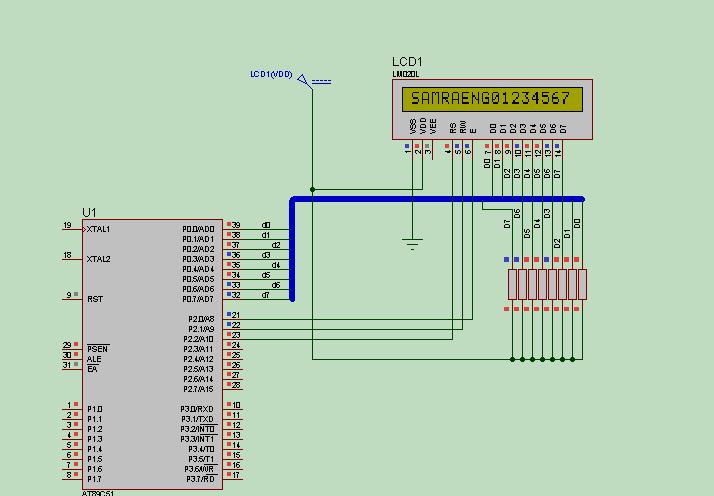

 8bit lcd display
update on 22-06-2007 		lcd.c
lcd.dsn
circuit.jpg		 the project is example program method of sent data 8bit to lcd display 1x16 charector
11

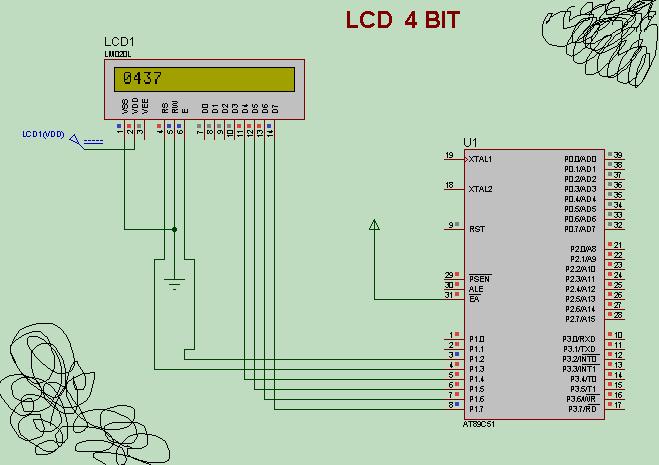

 4 BIT LCD DISPLAY
UPDATE 27-06-2007
LCD_4BIT.C
LCD_4BIT.DSN
 the project is example program method of sent data 4bit to lcd display 1x16 charector
UPDATE 27-06-2007
12
 4 bit lcd display with show
number 0-1500 		lcd_4bit_02.c
lcd_4bit_02.jpg		 the project is example how to display number mor than one digit update 29-06-2007
13

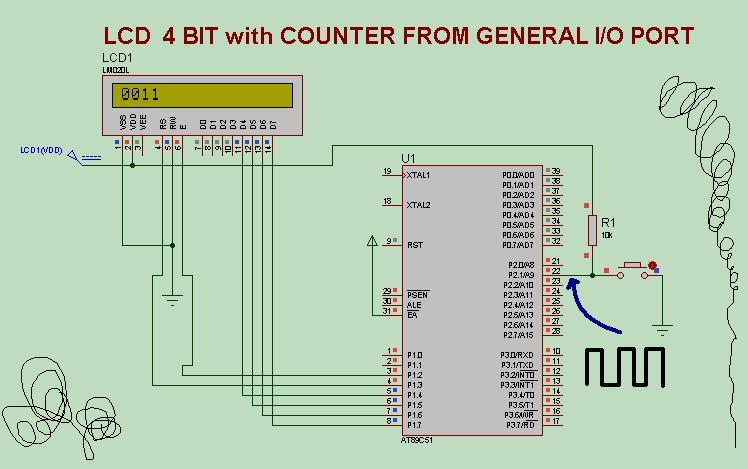

 COUNTER    STEP 1

COUNTER_STEP1.C
COUNTR_STEP1.DSN

 THE PROJECT IS EXAMPLE
HOW TO GET COUNTER FROM CLOCK AT GENERAL I/O PROT
14
 COUNTER STEP2
MODE1
 COUNTER STEP2.C

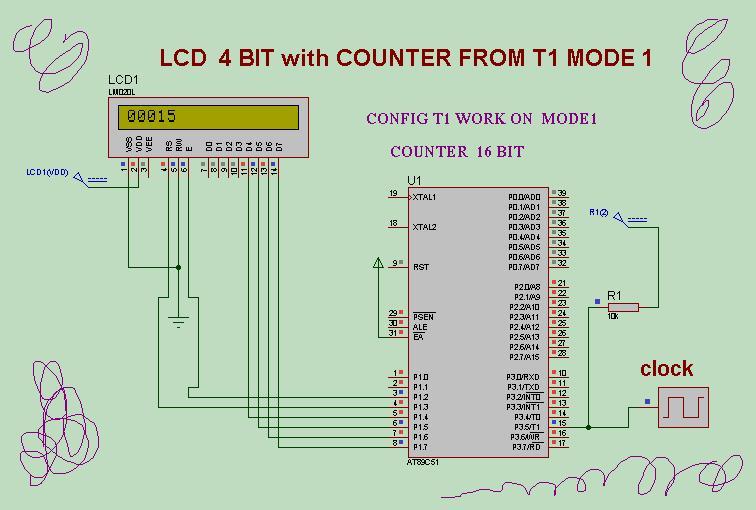

COUNTER STEP2.JPG
COUNTER_STEP2.DSN
GET COUNTER FROM T1 MODE1 16 BIT
COUNTER
UPDATE 03-07-2007
15
 counter step3

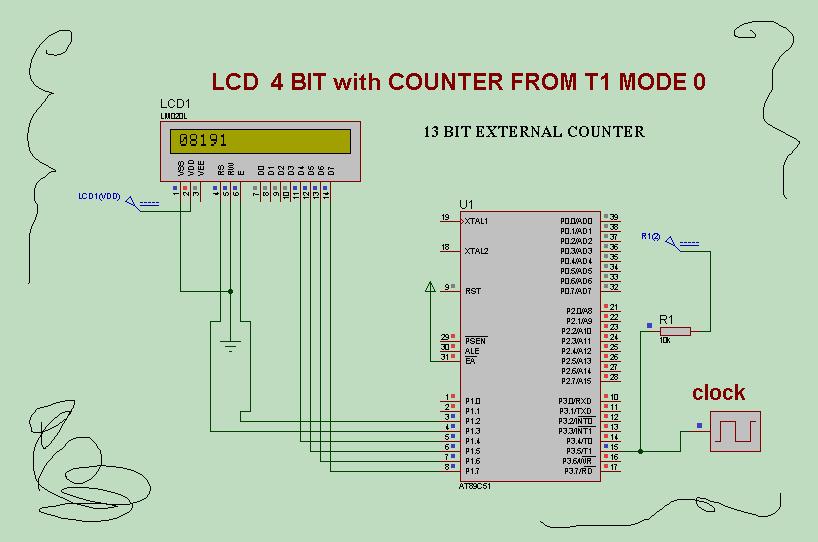

MODE 0 		COUNTER_STEP3.C
COUNTER_STEP3.JPG		 get counter from T1 MODE 0 13 BIT COUNTER
THE VALUE COUNTER 0 - 1FFFH OR 0-8191DEC

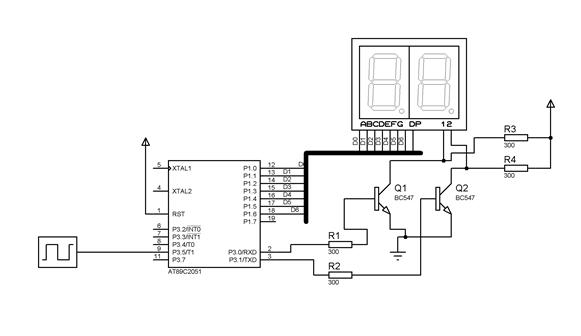

  lab_counter1_mod2

lab circuit

proteus_project

 make project by proteus 8
16
 COUNTER_STEP4 COUNTER_STEP4.C
COUNTER_STEP4.JPG		 COUNTER1 MODE2 8 BIT AUTO RELOAD
WHEN TL1 OVER FLOW
17

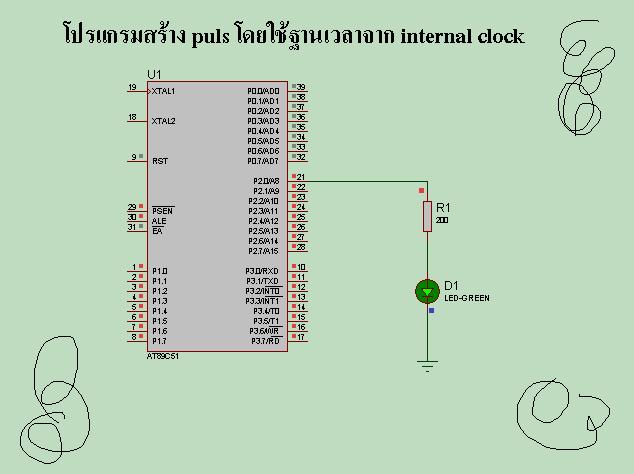

 TIMER1 WORK ON
TIMER MODE 		TIMER.C
TIMER1.JPG		 PROGRAM USE TIMER1 WORK
ON TIMER MODE

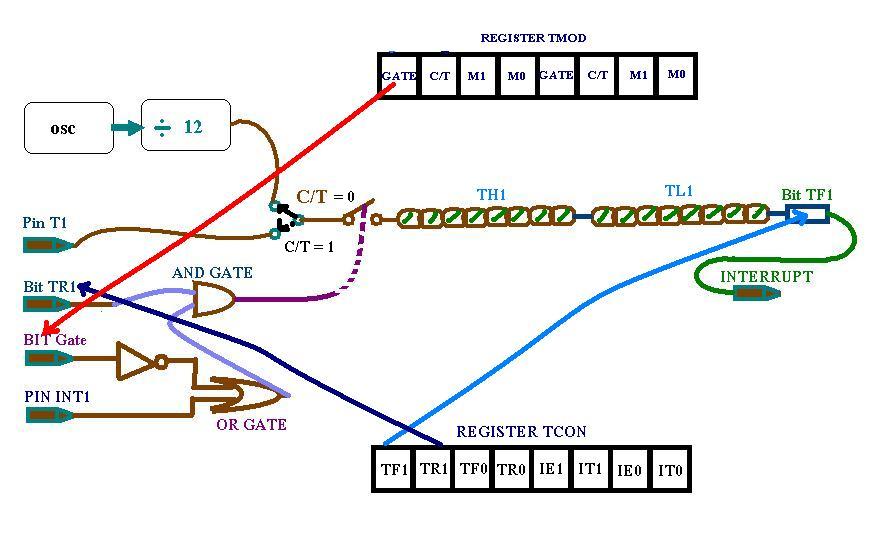

  basic of timer/counter 8051
18

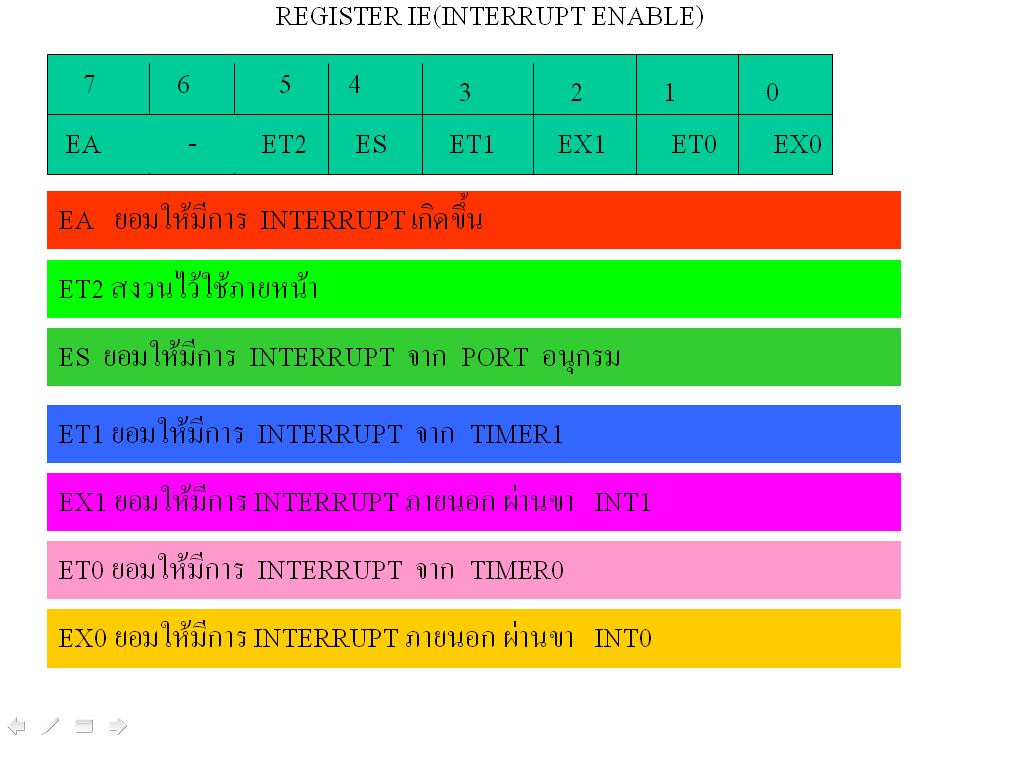

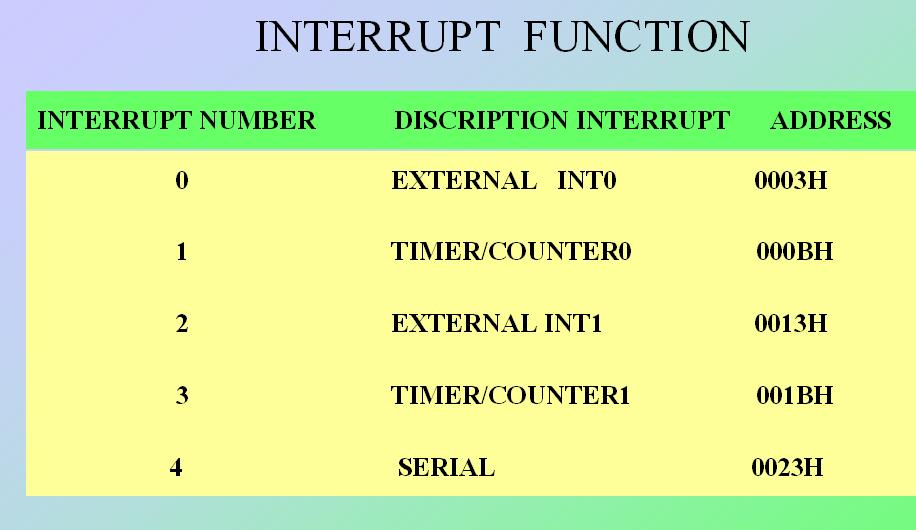

 INTERRUPT REGISTOR IE
INTERRUPT VECTOR 		ENABLE INTERRUPT REGISTOR
AND ADDRESS OF INTERRUPT
19

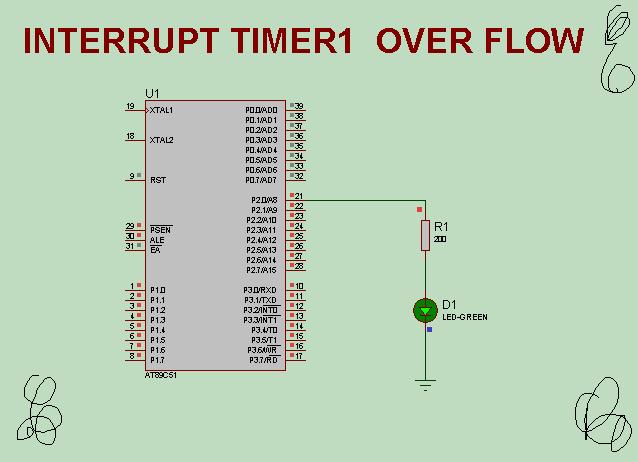

 INTERRUPT TIMER1 OVER FLOW INTERRUPT_T1.C
INTERRUPT_T1.JPG		 INTERRUPT TIMER1 OVERFLOW
20
 REAL TIME CLOCK(DS1307) DEL_EEP.C
IIC_31.C
rtc.c

download example source code from keil.com

ez uploader v3
